Product Summary

The C1005X7R1C104K is a Tiny I2C Programmable Linear Battery Charger. The C1005X7R1C104K is fully compliant with USB 3.0 and the USB Battery Charging Specification 1.2 and enables charging via the mini USB VBUS pin from a wall charger, car charger, or USB host port. The device operates from a 4 V to 6.7 V input voltage range but is tolerant of voltages up to 20 V. The 20 V voltage tolerance alleviates the concerns about the USB bus spiking during dis-connect or connect scenarios. The C1005X7R1C104K features an internal FET between the linear charger output and the battery. This permits battery isolation and, hence, system powering under a dead battery or no battery scenario, which allows for immediate system function on connec-tion to a USB power supply. The applicaations of the C1005X7R1C104K include Digital still cameras, Digital video cameras, Single cell Li-Ion portable equipmentPDAs, audio, and GPS devices, Portable medical devices, Mobile phones.

Parametrics

C1005X7R1C104K absolute maximum ratings: (1)VIN1, VIN2, VIN3 to AGND: -0.5 V to +20 V; (2)All Other Pins to AGND: -0.3 V to +6 V; (3)Continuous Drain Current, Battery Supple-mentary Mode, from ISO_Bx to ISO_Sx: 2.1 A; (4)Storage Temperature Range: -65℃ to +150℃; (5)Operating Junction Temperature Range: -40℃ to +125℃; (6)Soldering Conditions: JEDEC J-STD-020.

Features

C1005X7R1C104K features: (1)2.6 mm × 2 mm WLCSP package; (2)Fully programmable via I2C; (3)Flexible digital control inputs; (4)Up to 2.1 A current from an ac charger in LDO mode; (5)Operating input voltage from 4.0 V to 6.7 V; (6)Tolerant input voltage from .0.5 V to +20 V (USB VBUS); (7)Fully compatible with USB 3.0 and USB Battery Charging Specification 1.2; (8)Built-in current sensing and limiting; (9)As low as 30 mΩ battery isolation FET between battery and charger output; (10)Thermal regulation prevents over heating; (11)Compliant with JEITA 1 and JEITA 2 Li-Ion battery charging temperature specifications; (12)SYS_EN flag permits the system to be disabled until battery is at minimum required level for guaranteed system start-up.

Diagrams

C1005X7R1C104K block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

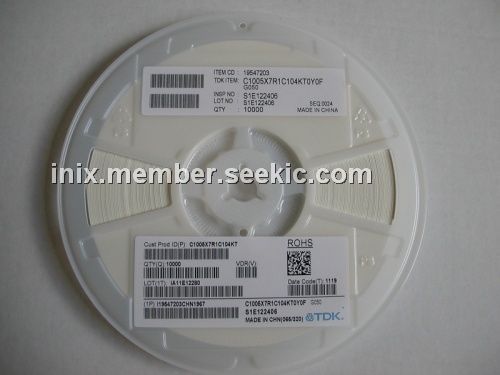

C1005X7R1C104K
C1005X7R1C104K

TDK

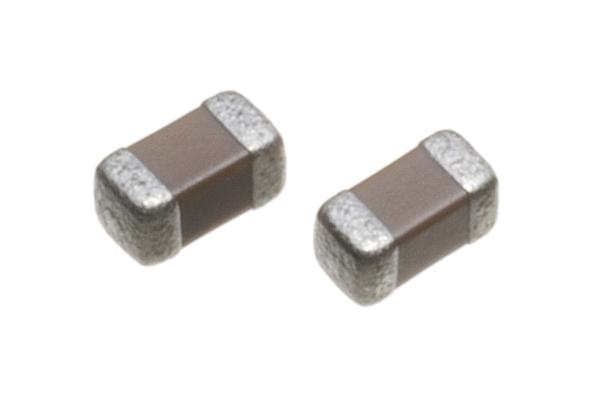

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT .1UF 16V 10%

Data Sheet

0-1: $0.06
1-50: $0.01
50-100: $0.01
100-500: $0.00
