Product Summary

The UPW0J561MPD is an Aluminum Electrolytic Capacitor.

Parametrics

UPW0J561MPD absolute maximum ratings: (1)Category Temperature Range: -55 to +105℃ (6.3 ~ 100V); -40 to + 105℃ (160 ~ 400V); -25 to +105℃ (450V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.47 to 15000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.

Features

UPW0J561MPD features: (1)Smaller case size and lower impedance than PM series; (2)Low impedance and high reliability withstanding 2000 hours to 8000 hours; (3)Capacitance ranges available based on the numerical values in E12 series under JIS; (4)Adapted to the RoHS directive (2002/95/EC).

Diagrams

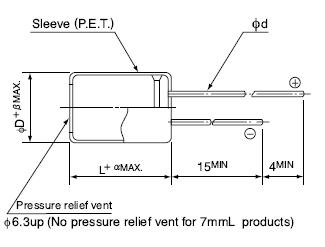

UPW0J561MPD block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPW0J561MPD
UPW0J561MPD
Nichicon

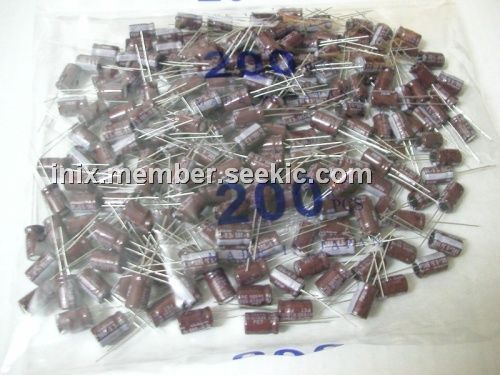

Aluminum Electrolytic Capacitors - Leaded 6.3volts 560uF 8x11.5 20% 3.5LS
Data Sheet
0-1: $0.27
1-25: $0.15
25-100: $0.11
100-200: $0.09
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPW0J103MHD
UPW0J103MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 10000uF 16x31.5 20% 7.5LS
Data Sheet
0-1: $1.15
1-25: $0.98
25-100: $0.89
100-200: $0.76
UPW0J103MHH6
UPW0J103MHH6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10000uF 6.3V 105c 18x25 20% 7.5LS
Data Sheet
Negotiable
UPW0J221MED
UPW0J221MED
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 220uF 6.3x11 20% 2.5LS
Data Sheet
0-1: $0.17
1-25: $0.16
25-100: $0.13
100-200: $0.11
UPW0J270MDD
UPW0J270MDD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 27uF 4x7 20% 1.5LS
Data Sheet
0-1: $0.17
1-25: $0.11
25-100: $0.10
100-200: $0.08
UPW0J272MPD
UPW0J272MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 6.3volts 2700uF 10x31.5 20% 5LS
Data Sheet
0-1: $1.00
1-25: $0.89
25-100: $0.65
100-200: $0.56
UPW0J222MPH6
UPW0J222MPH6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 2200uF 6.3V 105c 10x25 20%
Data Sheet
Negotiable
