Product Summary
The MCP3421 is a single channel low-noise, high accuracy ΔΣ A/D converter with differential inputs and up to 18 bits of resolution in a small SOT-23-6 package. The on-board precision 2.048V reference voltage enables an input range of ±2.048V differentially (Δvoltage = 4.096V). The device uses a two-wire I2C compatible serial interface and operates from a single 2.7V to 5.5V power supply. The applications of the MCP3421 include Portable Instrumentation, Weigh Scales and Fuel Gauges, Temperature Sensing with RTD, Thermistor, and Thermocouple, Bridge Sensing for Pressure, Strain, and Force.
Parametrics
MCP3421 absolute maximum ratings: (1)VDD: 7.0V; (2)All inputs and outputs w.r.t VSS: -0.3V to VDD+0.3V; (3)Differential Input Voltage: |VDD- VSS|; (4)Output Short Circuit Current: Continuous; (5)Current at Input Pins: ±2 mA; (6)Current at Output and Supply Pins: ±10 mA; (7)Storage Temperature: -65℃ to +150℃; (8)Ambient Temp. with power applied: -55℃ to +125℃; (9)ESD protection on all pins: ≥ 6kV HBM, ≥ 400V MM; (10)Maximum Junction Temperature (TJ): +150℃.
Features
MCP3421 features: (1)18-bit ΔΣ ADC in a SOT-23-6 package; (2)Differential input operation; (3)Self calibration of Internal Offset and Gain per each conversion; (4)On-board Voltage Reference: Accuracy: 2.048V ± 0.05%; Drift: 5 ppm/℃; (5)On-board Programmable Gain Amplifier (PGA): Gains of 1,2,4 or 8 ; (6)On-board Oscillator; (7)INL: 10 ppm of FSR (FSR = 4.096V/PGA); (8)Programmable Data Rate Options: 3.75 SPS (18 bits); 15 SPS (16 bits); 60 SPS (14 bits); 240 SPS (12 bits); (9)One-Shot or Continuous Conversion Options; (10)Low current consumption: 145 μA typical (VDD= 3V, Continuous Conversion); 39 μA typical (VDD= 3V, One-Shot Conversion with 1 SPS); (11)Supports I2C Serial Interface: Standard, Fast and High Speed Modes; (12)Single Supply Operation: 2.7V to 5.5V; (13)Extended Temperature Range: -40℃ to 125℃.

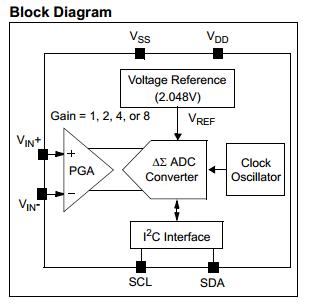

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP3421 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MCP3421A0T-E/CH |
Microchip Technology |
ADC (A/D Converters) 18-B delta-sigma ADC Sngl Ch 4sps |
Data Sheet |
|
|
||||||||||||
|
MCP3421A1T-E/CH |
Microchip Technology |
ADC (A/D Converters) 18-B delta-sigma ADC Sngl Ch 4sps |
Data Sheet |
|
|
||||||||||||
|
MCP3421A2T-E/CH |
Microchip Technology |
ADC (A/D Converters) 18-B delta-sigma ADC Sngl Ch 4sps |
Data Sheet |
|
|
||||||||||||
 |
MCP3421A5T-E/OT |
|
IC ADC 18BIT 3.75SPS SOT23-6 |
Data Sheet |
Negotiable |
|
||||||||||||
|
MCP3421DM-BFG |
Microchip Technology |
Data Conversion IC Development Tools MCP3421Battery Fuel Gauge Demo Brd |
Data Sheet |
|
|
||||||||||||
|
MCP3421DM-WS |
Microchip Technology |
Data Conversion IC Development Tools WT SCALE DEMO BRD 18 I/O 10-BIT ADC |
Data Sheet |
|
|
||||||||||||
|
MCP3421EV |
Microchip Technology |
Data Conversion IC Development Tools MCP3421 SOT23-6 Eval Board |
Data Sheet |
|
|
||||||||||||
