Product Summary

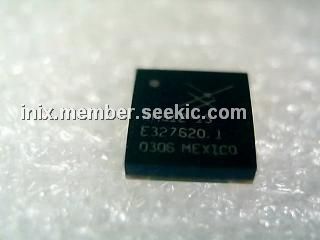

The RM912-15 is a dual mode Code Division Multiple Access (CDMA)/Advanced Mobile Phone Service (AMPS) Power Amplifier. The RM912-15 is a fully matched 6-pin LCC surface mount module designed for mobile units operating in the 824-849 MHz cellular bandwidth. This device meets stringent IS95 CDMA linearity requirements to beyond 28 dBm output power and can be driven to power output levels beyond 31 dBm for high efficiency FM mode operation. A single GaAs Microwave Monolithic Intergrated Circuit (MMIC) contains all active circuitry in the module.


RM912-15 absolute maximum ratings: (1)RF Input Power, Pin: 3.0 to 6.0 dBm; (2)Supply Voltage, Vcc: 3.4 to 5.0 Volts; (3)Reference Voltage, Vref: 3.0 to 3.3 Volts; (4)Case Operating Temperature, Tc: -30 to +110℃; (5)Storage Temperature, Tstg: -55 to +125℃.


RM912-15 features: (1)Low voltage positive bias supply; (2)Good linearity; (3)High efficiency; (4)Dual mode operation; (5)Large dynamic range; (6)6-pin LCC package (6 x 6 x 1.5 mm); (7)Power down control.


RM912-15 block diagram
