Product Summary
The PCI6140 is a PCI-to-PCI Bridge. The world’s first, Patent Pending the PCI6140 provides very low cost, PCI-to-PCI bridging functions. It is optimized to provide PCI masters to achieve optional Zero Clock latency in bursting data throughPCI Latency Sensitive Systems, PCI-Retry Penalty Sensitive Systems, PCI Slave Access Intensive bridging functions, High Performance and Low cost PCI-to-PCI bridging functions, Low Power and PCI ClockRun support, Compact PCI with Hot Swap. the PCI6140 PCI-to-PCI bridge. It supports up to 4 Secondary PCI master devices. The applications of the PCI6140 include PCI Latency Sensitive Systems, PCI-Retry Penalty Sensitive Systems, PCI Slave Access Intensive bridging functions, High Performance and Low cost PCI-to-PCI bridging functions, Low Power and PCI ClockRun support, Compact PCI with Hot Swap.
Parametrics
PCI6140 absolute maximum ratings: (1)Power Supply, Vcc: -0.3 to 3.8 V; (2)Input Voltage, Vin: -0.3 to 5.75 V; (3)Output Voltage, Vout: -0.3 to Vcc +0.3 V; (4)Storage Temperature, TSTG: -40 to +125℃; (5)Operating Ambient Temperature: 0 to +70℃.
Features
PCI6140 features: (1)3.3V, 33 MHz, PCI 2.1 and Compact PCI Hot Swap friendly features; (2)PC99 Power Management D3 Cold Wakeup Capable; (3)Very efficient, low power, low cost and easy to use; (4)PCI ClockRun support.; (5)Optional Zero clock latency when bursting data across PCI 6140 to preserve maximum data rate; (6)PCI compatible cycle completion without PCI Retry penalty of a traditional PCI bridge; (7)Legacy VGA and Audio IO address support; (8)Provides arbitration support for 4 bus masters on secondary interface; (9)Supports PCI Type 1 to Type 0 and Type 1 configuration command conversion; (10)Supports 1-Clock Latency Mode; (11)Synchronous Primary and Secondary Ports; (12)128-pin PQFP package.

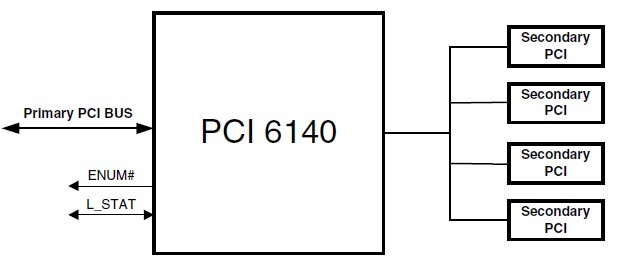

Diagrams
