Product Summary
The AP1086D33G-13 is a low dropout positive adjustable or fixed-mode regulator with minimum of 1.5A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. The AP1086D33G-13 is also well suited for other applications such as VGA cards. The AP1086D33G-13 is guaranteed to have <1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25V to 5.0V with 4.7 to 12V input supply by different output voltage.
Parametrics
AP1086D33G-13 absolute maximum ratings: (1)DC Supply Voltage, Vin: -0.3 to 12 V; (2)Power Dissipation, PD: Internally Limited; (3)Storage Temperature, TST: -65 to +150℃; (4)Operating Junction Temperature Range, TOP: 0 to +150℃.
Features
AP1086D33G-13 features: (1)3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V; (2)1.4V Maximum Dropout at Full Load Current; (3)Fast Transient Response; (4)Built-in Thermal Shutdown; (5)Output Current Limiting.

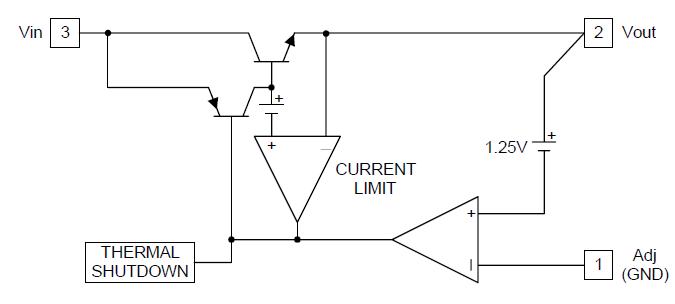

Diagrams
